Customized Hydraulic Boat Control System Parts Of Ship Steering Wheel

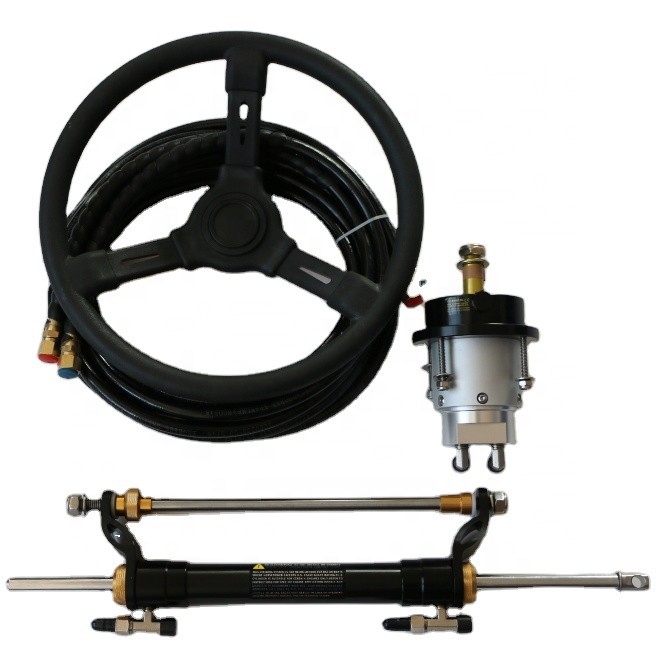

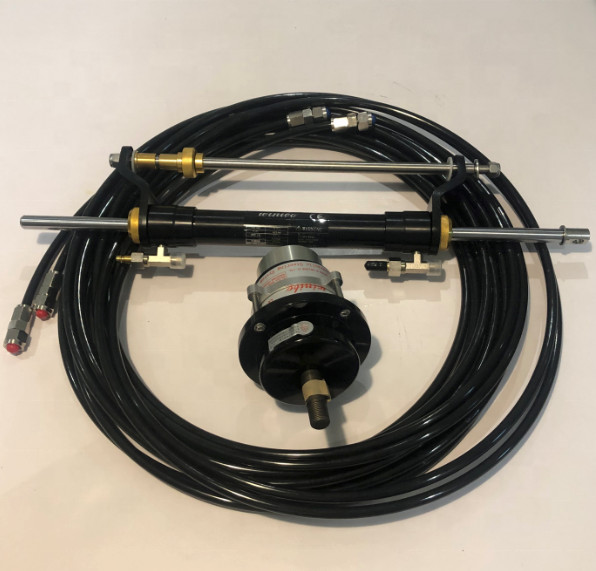

MHS90 marine Hydraulic Outboard Steering System boat steering cylinder helm 90HP
displacement 16cc/rev,cylinder 71.1cc,cylinder output force 232kgf, max pressure 69kgf/cm2,213mm strode,dia.25mm bore,dia.14mm piston rod,5pcs plunger,for steering wheel dia.32 to 46cm,5 times for hardover to hardover,57*57*15.5 casing size,9.5kg
The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type (such as HD-S type) or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.
This kind can be divided into 3 types:
MHS90----can be used for 90hp outboard engine
MHS150--can be used for 90-150hp outboard engine
MHS300--can be used for 150-300hp outboard engine
The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)
The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.
Quality warranty: 12 months
The steering gear is characterized by: pushing the rudder mechanism adopts swing cylinder piston, simple compact structure, light weight, easy installation process, valve assembly, integration and a high degree of hydraulic components are domestic famous brand, reliable quality, replacement convenient, hydraulic system uses the open system, the hydraulic system simplified.
In addition, the possible failure of the site, located a sound and light alarm devices, thereby improving steering vitality.
This kind can be divided into 3 types:
MHS90----can be used for 90hp outboard engine
MHS150--can be used for 90-150hp outboard engine
MHS300--can be used for 150-300hp outboard engine
| USAGE | * Designed and developed especially for marine use; |
| Application | * Mainly applied in mechanical/manual steering for yachts,fishing boats and other waterborne vehicles; |
| Accessory | * Combined with steering cable series 160,end C,all stainless steel cable output ends; |
| Features | * Made in zinc alloy,corrosion resistant,ergonomically designed,easy to install,compact for mounting; |
| Cable Length | * With cable 5m; |
| Enfine (HP) | * For use with marine ourboard engines up tp 90hp to 300
|
The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type (such as HD-S type) or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.
This kind can be divided into 3 types:
MHS90----can be used for 90hp outboard engine
MHS150--can be used for 90-150hp outboard engine
MHS300--can be used for 150-300hp outboard engine
The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)
The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.
Quality warranty: 12 months
The steering gear is characterized by: pushing the rudder mechanism adopts swing cylinder piston, simple compact structure, light weight, easy installation process, valve assembly, integration and a high degree of hydraulic components are domestic famous brand, reliable quality, replacement convenient, hydraulic system uses the open system, the hydraulic system simplified.
In addition, the possible failure of the site, located a sound and light alarm devices, thereby improving steering vitality.

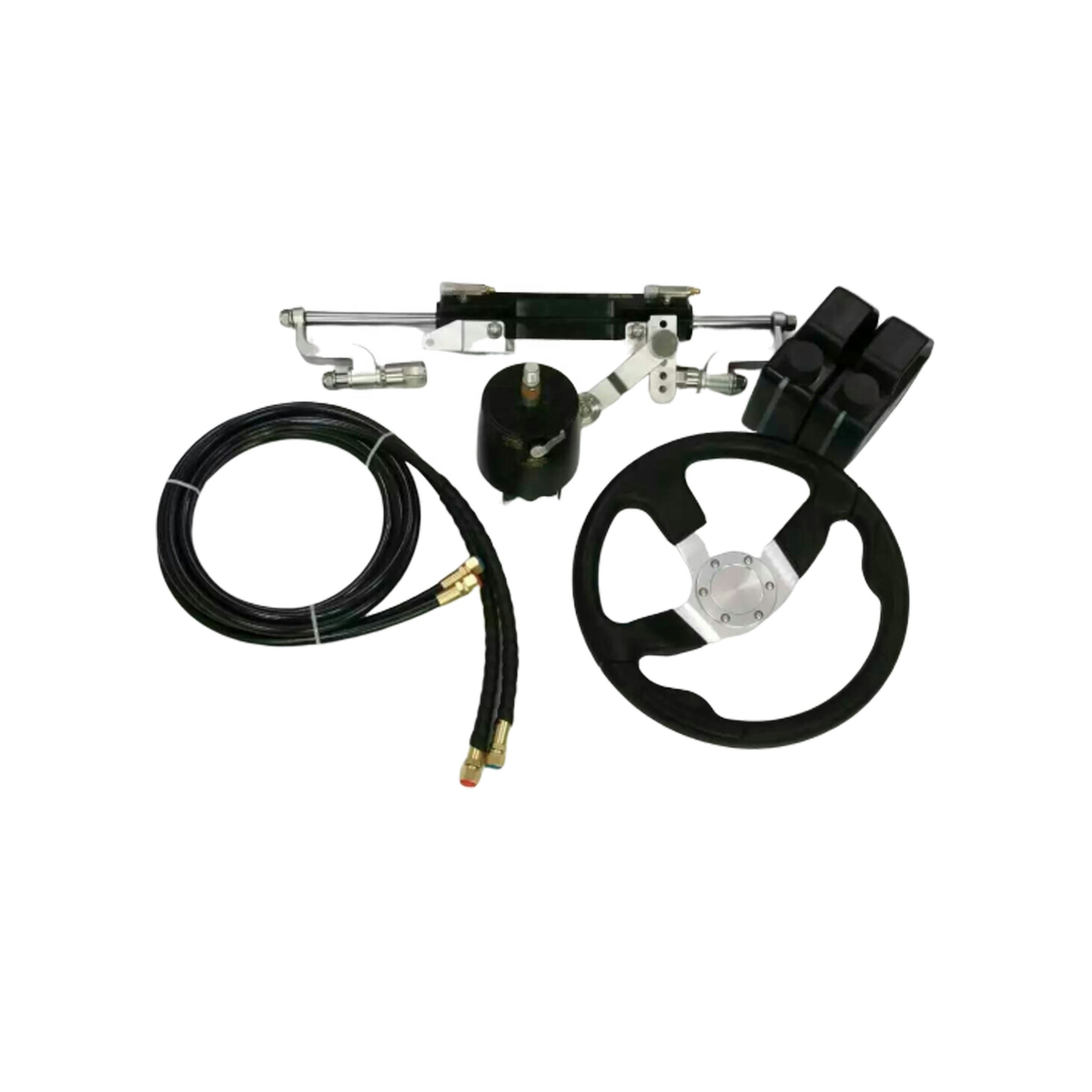

Hydraulic Steering gear system(90HP/150HP/300HP)
* Compact design
* Front Mounting
* Ball bearing piston race, 7 pistions
* In built lock valve (70bar) for positive rudder lock
* 3/4'' tapered stainless steel shaft for strength and durability
* Cast iron cylinder rotor for greater durability and longer life
* 1/4'' NPT fitting for 3/8'' tube
* Wheel size within 500mm is available for this model
Cylinder Specification
* Volume: 137cc / 8.4cu.in
* Output force: 470kg / 1036lbs
* Inside diameter: 35mm / 1-3/8''
* Bore shaft length: 550mm / 21.6''
